Evaluation

Learn how to evaluate a pre-trained model stored in a checkpoint.

We'll cover the following

A. Training vs. evaluation

To measure how well our model has been trained, we evaluate it on datasets other than the training set. The datasets used for evaluation are known as the validation and test sets. Note that we don’t shuffle or repeat the evaluation datasets, since those are techniques used specifically to improve training.

The validation set is used to evaluate a model in between training runs. We use the validation set to tweak certain hyperparameters for a model (such as learning rate or batch size) in order to make sure training continues smoothly. We also use the validation set to detect model overfitting, so we can stop training if overfitting is detected.

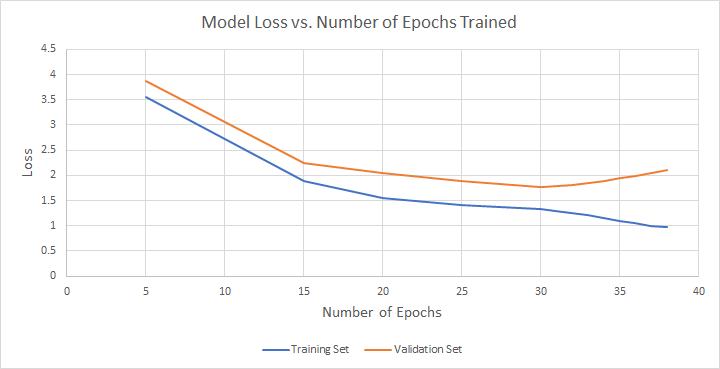

Example of overfitting a model on the training set. Overfitting is a common occurrence when training a complex model for too long.
Example of overfitting a model on the training set. Overfitting is a common occurrence when training a complex model for too long.

Overfitting occurs when we train a model (usually a relatively complex model) for too long on the training set, resulting in a decreased ability to generalize well to other datasets. In the above plot, overfitting occurs around the 32nd32^{nd} epoch of training, when the loss on the validation set begins to increase.

The test set is used to evaluate the final version of a model, after it is completely done training. Evaluating on the test set lets us know how well our model performs on its given task.

B. Evaluation metrics

There are a variety of different metrics that can be used for evaluation, depending on the application that a model is built for. However, a universal evaluation metric for machine learning models is the loss. Since every machine learning model is trained to minimize some loss metric, it is natural to use that loss metric during evaluation.

Another commonly used evaluation metric for classification models is accuracy. This refers to the fraction of dataset observations that a machine learning model can label with the correct class. While we train a classification model by minimizing the loss (normally cross entropy), the true goal is to increase model accuracy when classifying new data.

Time to Code!

In this chapter you’ll be completing the evaluate_saved_model function, which restores a classification model from a checkpoint and then runs evaluation on the model.

First, we get the checkpoint state from the checkpoint directory and make sure the checkpoint file is there.

Set ckpt equal to tf.compat.v1.train.get_checkpoint_state applied with ckpt_dir as the only argument.
Then create an if block that checks if ckpt is not None.

If the checkpoint state is correct, we can set up a Saver object and restore the model parameters.

Inside the if block, set saver equal to a tf.compat.v1.train.Saver object, initialized with no arguments.
Then call saver.restore with sess and ckpt.model_checkpoint_path as the two input arguments.

The evaluation metrics we return are the model accuracy and loss. We’ll use the input argument sess (a tf.compat.v1.Session object) to extract the metrics.

Inside the if block, set eval_metrics equal to sess.run with the tuple (self.accuracy, self.loss) as the only argument.
Then return eval_metrics.

Press + to interact
import numpy as np
import tensorflow as tf
class ClassificationModel(object):
    def __init__(self, output_size):
        self.output_size = output_size

    # Run model evaluation
    def evaluate_saved_model(self, sess, ckpt_dir):
        # CODE HERE
        pass
    # See the "Efficient Data Processing Techniques" section for details
    def dataset_from_numpy(self, input_data, batch_size, labels=None, is_training=True, num_epochs=None):
        dataset_input = input_data if labels is None else (input_data, labels)
        dataset = tf.data.Dataset.from_tensor_slices(dataset_input)
        if is_training:
            dataset = dataset.shuffle(len(input_data)).repeat(num_epochs)
        return dataset.batch(batch_size)

    # See the "Machine Learning for Software Engineers" course on Educative
    def run_model_setup(self, inputs, labels, hidden_layers, is_training, calculate_accuracy=True):
        layer = inputs

        for num_nodes in hidden_layers:
            input = tf.keras.Input(tensor = layer)
            layer = tf.keras.layers.Dense( num_nodes,
                activation='relu')(input)
        input_layer = tf.keras.Input(tensor = layer)
        logits = tf.keras.layers.Dense( self.output_size,
            name='logits')(input_layer)
        self.probs = tf.compat.v1.math.softmax(logits, name='probs')
        self.predictions = tf.math.argmax(
            self.probs, axis=-1, name='predictions')
        if calculate_accuracy:
            class_labels = tf.math.argmax(labels, axis=-1)
            is_correct = tf.equal(
                self.predictions, class_labels)
            is_correct_float = tf.cast(
                is_correct,
                tf.float32)
            self.accuracy = tf.math.reduce_mean(
                is_correct_float)
        if labels is not None:
            labels_float = tf.cast(
                labels, tf.float32)
            cross_entropy = tf.compat.v1.nn.softmax_cross_entropy_with_logits_v2(
                labels=labels_float,
                logits=logits)
            self.loss = tf.reduce_mean(
                cross_entropy)
        if is_training:
            adam = tf.compat.v1.train.AdamOptimizer()
            self.train_op = adam.minimize(
                self.loss, global_step=self.global_step)

    # Run training of the classification model
    def run_model_training(self, input_data, labels, hidden_layers, batch_size, num_epochs, ckpt_dir):
        self.global_step = tf.compat.v1.train.get_or_create_global_step()
        dataset = self.dataset_from_numpy(input_data, batch_size,
            labels=labels, num_epochs=num_epochs)
        iterator = tf.compat.v1.data.make_one_shot_iterator(dataset)
        inputs, labels = iterator.get_next()
        self.run_model_setup(inputs, labels, hidden_layers, True)
        tf.summary.scalar('accuracy', self.accuracy)
        tf.summary.histogram('inputs', inputs)
        log_vals = {'loss': self.loss, 'step': self.global_step}
        logging_hook = tf.compat.v1.train.LoggingTensorHook(
            log_vals, every_n_iter=1000)
        nan_hook = tf.compat.v1.train.NanTensorHook(self.loss)
        hooks = [nan_hook, logging_hook]
        with tf.compat.v1.train.MonitoredTrainingSession(
            checkpoint_dir=ckpt_dir,
            hooks=hooks) as sess:
            while not sess.should_stop():
                sess.run(self.train_op)
