Junit 5 Architecture
This lesson describes Junit 5 architecture, along with their core functionality.
Junit 5 Architecture has three main components -
-
Junit Platform It provides a core foundation to help launching testing frameworks on JVM. It acts as an interface between JUnit and its clients such as build tools (
Maven and Gradle
) and IDE’s (Eclipse and IntelliJ
). It introduces the concept of aLauncher
which external tools use to discover, filter, and execute tests.
It also provides the TestEngine API
for developing a testing framework that runs on the JUnit platform. Using TestEngine API
, 3rd party testing libraries such as Spock, Cucumber, and FitNesse can directly plug in and provide their custom TestEngine.
-
Junit Jupiter It provides a new programming model and extension model for writing tests and extensions in Junit 5. It has a whole new annotation to write test cases in Junit 5. Some of the annotations are
@BeforeEach
,@AfterEach
,@AfterAll
,@BeforeAll
etc. It implements TestEngine API provided by Junit Platform so that Junit 5 test can be run. -
Junit Vintage The term
Vintage
basically means classic. Thus, this sub-project provides extensive support for writing test cases in JUnit 4 and JUnit 3. Thus, backward compatibility is been provided by this project.

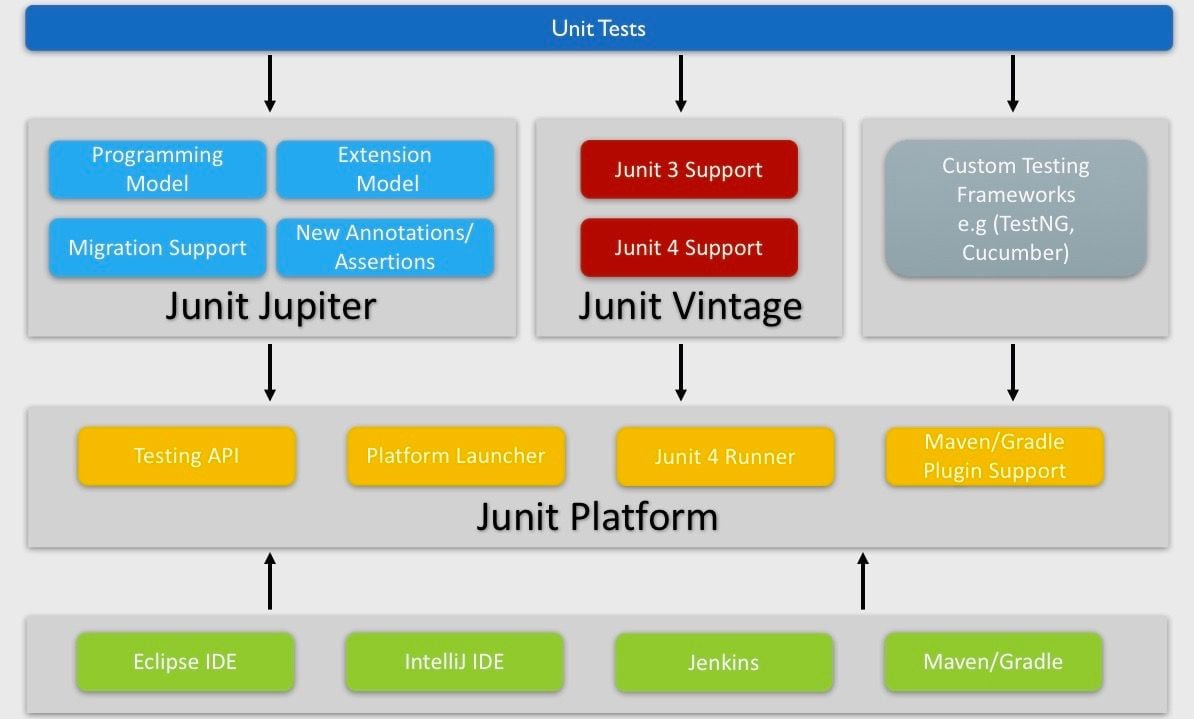

JUnit 5 Architecture
Quiz on JUnit 5 Architecture
Q
JUnit 4 test cases are run on JUnit Vintage Engine.
A)
True
B)
False
Quiz on JUnit 5 Architecture
Q
JUnit 5 test cases are run on JUnit Jupiter Engine.
A)
True
B)
False
In the next lesson, we will learn to create our first JUnit 5 test case.
