Max Pooling

Understand how padding layers can improve a CNN's performance.

We'll cover the following

Chapter Goals:

  • Learn about max pooling and its purpose in CNNs
  • Apply max pooling to the output of the convolution layer

A. Purpose of pooling

While the convolution layer extracts important hidden features, the number of features can still be pretty large. We can use pooling to reduce the size of the data in the height and width dimensions. This allows the model to perform fewer computations and ultimately train faster. It also prevents overfitting, by extracting only the most salient features and ignoring potential distortions or uncommon features found in only a few examples.

B. How pooling works

Similar to a convolution, we use filter matrices in pooling. However, the pooling filter doesn't have any weights, nor does it perform matrix dot products. Instead, it applies a reduction operation to subsections of the input data.

The type of pooling that is usually used in CNNs is referred to as max pooling. The filters of max pooling use the max operation to obtain the maximum number in each submatrix of the input data. An example of max pooling is shown below:

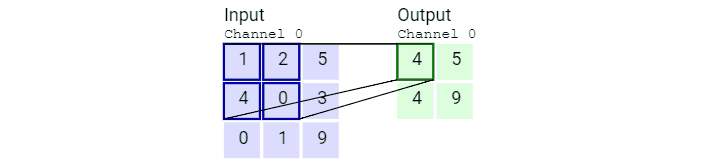

Max pooling with a 2x2 filter and stride size of 1. Note that the output data has reduced dimensions compared to the input data.
Max pooling with a 2x2 filter and stride size of 1. Note that the output data has reduced dimensions compared to the input data.

Other types of pooling include min pooling and average pooling, which use the min and average operations, respectively, over subsections of the input data.

For input data with dimensions Hin×Win\small H_{in} \times W_{in} the output of pooling with filter dimensions HF×WF\small H_F \times W_F and stride size S\small S has the following height and width:

Hout=⌈Hin−HF+1S⌉H_{out} = \Bigl\lceil \frac{H_{in} - H_F + 1}{S} \Bigr\rceil

Wout=⌈Win−WF+1S⌉W_{out} = \Bigl\lceil \frac{W_{in} - W_F + 1}{S} \Bigr\rceil

C. Padding

Similar to convolutions, we may want to pad our input data prior to pooling. We pad our data with a value dependent on the pooling operation. For example, in max pooling we pad each matrix with -∞. Since -∞ is smaller than every number, it allows us to resize the input data without adding any distortions when pooling. An example of max pooling with padding is shown below:

Max pooling with padding for input data with dimension 4x4. The "N" character represents -∞.
Max pooling with padding for input data with dimension 4x4. The "N" character represents -∞.

When we use padding, the output dimensions do not depend on the filter dimensions anymore. Specifically, for input data with dimensions Hin×Win\small H_{in} \times W_{in} , the output of padded pooling with a stride size of SS has dimensions

Hout=⌈HinS⌉H_{out} = \Bigl\lceil \frac{H_{in}}{S} \Bigr\rceil

Wout=⌈WinS⌉W_{out} = \Bigl\lceil \frac{W_{in}}{S} \Bigr\rceil

Time to Code!

We’ll apply max pooling to the output of our first convolution layer from the previous chapter. In TensorFlow, a max pooling layer is implemented with the tf.keras.layers.MaxPool2D function. The function takes in the following required arguments:

  • strides: The stride size for the kernel matrix. Can be a single integer (same stride size for vertical/horizontal) or a tuple of 2 integers (manually specified vertical/horizontal stride sizes). The first element of the tuple is the vertical stride, the second is the horizontal stride.
  • name: The name for the pooling layer.

The tf.keras.layers.MaxPool2D function also takes in a keyword argument for padding. The values are either 'valid' or 'same', with the default value being 'valid'.

Set pool1 equal to tf.keras.layers.MaxPool2D applied with conv1 as the inputs. The function will use a pooling size of [2, 2] and a stride size of 2, both horizontally and vertically. We’ll also set the name argument to ‘pool1’.

Press + to interact
import tensorflow as tf
class MNISTModel(object):
    # Model Initialization
    def __init__(self, input_dim, output_size):
        self.input_dim = input_dim
        self.output_size = output_size

    # CNN Layers
    def model_layers(self, inputs, is_training):
        reshaped_inputs = tf.reshape(
            inputs, [-1, self.input_dim, self.input_dim, 1])
        # Convolutional Layer #1
        conv1 = tf.keras.layers.Conv2D(
        filters=32,
        kernel_size=[5, 5],
        padding='same',
        activation='relu',
        name='conv1')(reshaped_inputs)
        # CODE HERE
